Author: Donatien MBADI OUM, Oracle | AWS | Azure



1.     What is IAM?

AWS IAM Overview

AWS Identity and Access Management or IAM is a service that allows AWS customers to manage user access and permission for their accounts, APIs at a service level or resource level within AWS.

IAM can manage users and security credentials (such as API access keys) and allow users to access AWS resources such as EC2, S3 etc.

With IAM, you can specify Who or What Can access services and resources in AWS, centrally manage fine-grained permissions and analyze access to refine permissions across AWS, whether through the AWS GUI-based console in a web browser or through the AWS command line interface (CLI) or different Software Development Kits (SDK).

Let’s walking through the basic functions of IAM in practice, focusing on user and group management and assigning access to the specific resources using IAM-managed policies.

2.    IAM Users, Groups, Roles and Policies

When you first create an AWS account, you begin with one sign-in identity that has full access to all AWS services and resources in the account. This identity is called a Root user and is accessed by signing in with the email address and password that you used to create the account.

We strongly recommend that you secure and don’t use the root user for day-to-day tasks. Your root user credentials must be used to perform the tasks that only the root user can perform. To secure the root account, you can:

-          Enable multi-factor authentication

-          Create an admin group for your administrators, and assign the appropriate permissions to this group

-          Create user accounts for administrators

-          Add user to the admin group



An IAM user is an identity within your AWS account that has specific permissions for a single person or application.

An IAM group is an identity that specifies a collection of IAM users. Groups is used to specify permissions for multiple users at a time.

In the above diagram, we have an AWS accounts. Inside IAM, we create different groups, and users can belong to those groups. For example, Mbadi and Mohamadou might belong to the group Admins which provide different sets of permissions such as access to billing or access to managing other IAM users, roles, policies or other security information. Group Developers might only have access to a subset of services such as a set of EC2 instances of specific S3 buckets that allow Boyomo, Kenfack, Foundike and Tia to write development code for their applications. Group Test might have a different set of access that allow Fadimatou, Santounga and Assouala to make application testing.

An IAM role is an identity within your AWS account that has specific permissions. A role is similar to a user, but it is not associated with a specific person.

A policy is an object in AWS that, when associated with an identity or resource, defines their permissions. AWS evaluates these policies when an IAM principal (user or role) makes a request. Most of policies are stored in AWS as JSON documents. You can create your own policy or use existing policies.

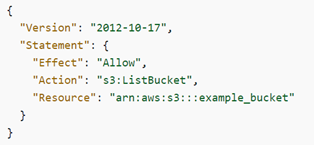

Example of JSON Policy

-          Version – specify the version of the policy

-          Statement – use as container for the following element

-          Sid – (Optional) – Include statement ID to differentiate between your statements

-          Effect – Use Allow or Deny to indicate whether the policy allows or denies access

-          Principal – (Required only for some circumstances), Implies user or role

-          Action – Include a list of actions that the policy allows or denies

-          Resource - (Required only for some circumstances), Specifies the list of resources

-          Condition – (Optional), Specifies the circumstances under which the policy grants permission



3.     Lab presentation

In this lab, we will walking through the basic functions of IAM, focusing on user and group management and assigning access to specific resources using IAM-managed policies. We will how to find the login URL for AWS users to be able to log into the account. We will log in different AWS users and see how different permissions that are assigned via the groups affect the users.



User	In Group	Permissions
user1	S3Support	Read-Only access to S3
user2	EC2Support	Read-Only access to EC2
user3	EC2Admin	View, Start, Stop EC2 instances



Three groups will be created. The first is the S3 Support group which provide read-only access to S3. EC2 Support group which provides read-only access to EC2 and the EC2 Admin group which provides permissions to view, start and stop EC2 instances. Three users will be created, user1, user2 and user3 which belong respectively to S3 Support group, EC2 Support group and EC2 Admin group.

3.1.  Create a EC2 instance



a.       Log in to the AWS Management Console using your root account.

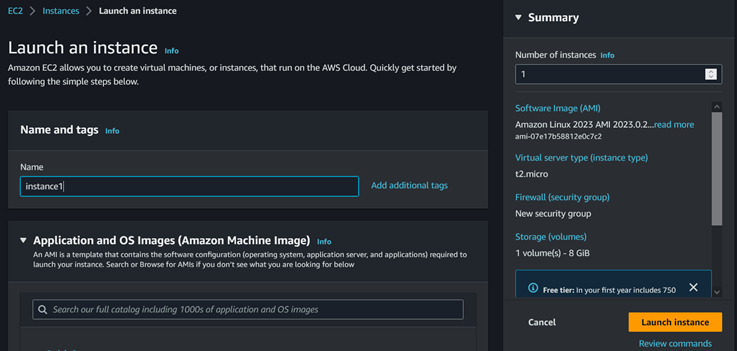

b.      Navigate on EC2, click in Instances and Launch instances

c.       Enter instance name and Proceed without a key pair, Leave others on default values en click on Launch Instance

d.      The instance is successfully created



3.2. Create a policy

Log in to the AWS Management Console using your root account.

a.       Navigate on Policies and Click on Create policy

b.      Define permissions

On Visual Editor Tab, click on Choose a service and add actions and click on Next tags

c.       Review policy

Enter a policy name and click on Create policy.

d.      Explore a JSON policy

3.3.  Group creation



a.       Log in to the AWS Management Console using your root account.

b.      Navigate to IAM

c.       Click on User Groups and then Create group

d.      Enter a group name and attach the policy

For the other groups, S3Support and EC2Support we will use existing AmazonS3ReadOnlyAccess and AmazonEC2ReadOnlyAccess policies respectively.

3.4. User creation



a.       Log in to the AWS Management Console using either your root account.

b.      Navigate on IAM, Click user, Add users



c.       Enter user name and Click on Next



d.      Set permissions

Add user to group and Click Next

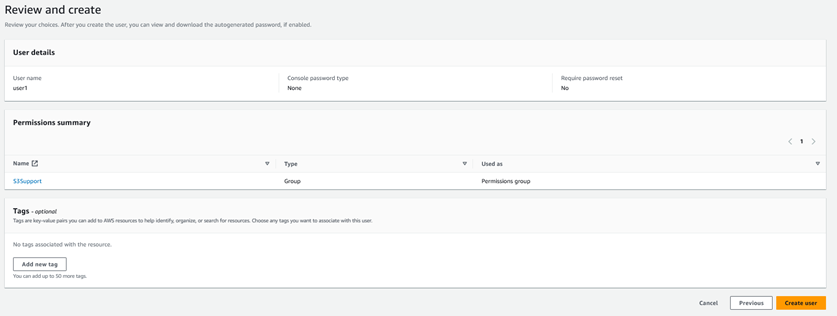

e.      Review and create

Click on Create user

e.      Enable user to have console access

Click on a user name and on Enable console access

f.        Choose Enable option button et optionally define a custom password

g.       Apply changes

f.        Repeat the same procedure for user2 on EC2Support group and user3 on EC2Admin group.



3.5.  Use the IAM Sign Link to Sign in as Each user

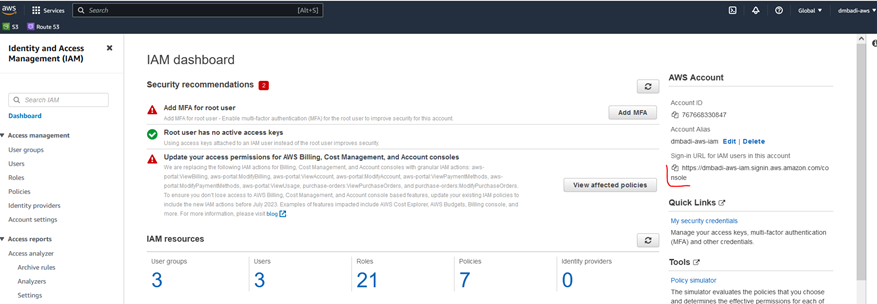

In the IAM sidebar menu, select Dashboard

In the AWS Account section on the right, copy the sign-in URL

3.5.1.    Sign in as user1

a.       In a new browser tab, navigate to the URL and log in to AWS Management Console as user1

b.      By remembering that this user only has read-only access to S3. Navigate on S3 and Click on Create bucket

c.       Enter bucket name

d.      Leave all other default settings and click Create bucket

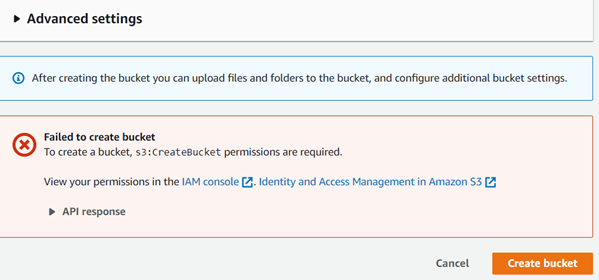

You should receive an Access Denied error, indicating that your group policy is in effet



e.      Navigate on EC2. You should see a number of API errors, indicating that you do not have access to EC2.

f.        In the top right corner of the page, expand the user1 dropdown menu and copy the Account ID and then click Sign out.

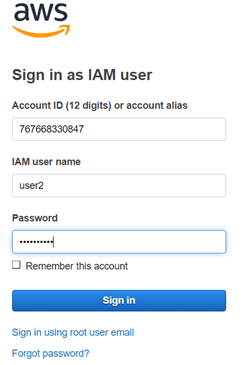

3.5.2.    Sign in as user2

a.       Remember that this user only has read-only access to EC2. Navigate on EC2. Select Instances (running)

b.      Check the checkbox to the left of the running instance and review the instance details



c.       Along the top of the page, use the instance state dropdown to select Stop instance, and then click Stop

You should see an error message, since this user doesn’t have the permissions to stop instances

d.      Navigate to S3. You should see that S3 is unavailable for user2 because this user doesn’t have any permissions outside of EC2.

Copy the Account ID and then Sign out.

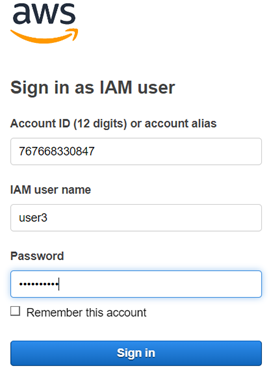

3.5.3.    Sign in as user3

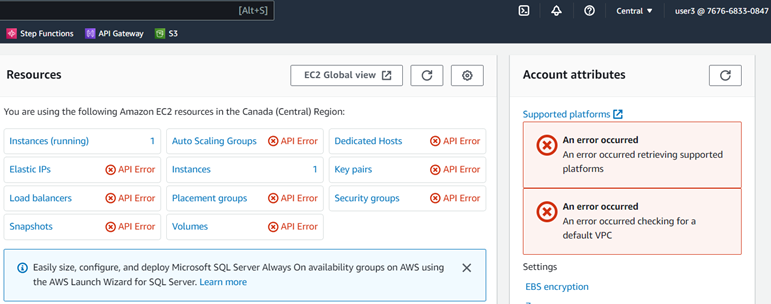

a.       Remember that this user can view, start and stop EC2 instances. Navigate on EC2. From resources section, select Instances (running)

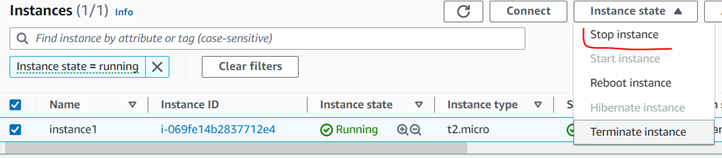

b.      Check the checkbox to the left of the running instance, use the instance state dropdown to select Stop Instance, and then click Stop.

c.       You can see that the instance is in Stopping state

d.      After a minute, refresh the instances page to verify that the instance is now in a Stopped state.
